Reactor - Refueling Completion

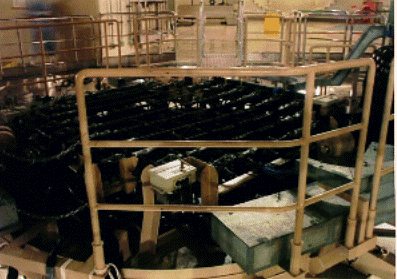

This photo shows the power cables attached at the top of the reactor. These cables are used for operating the control rod drive mechanisms and for providing the control rod position indication.
 Photo by J.A.Gonyeau
